The NV-FLX-04-XKIT from NVT Phybridge is an IEEE-compliant and negotiates power requirements with up to 4 IP devices, delivers 30W of power over 2-pairs, and can be locally powered.

NVT Phybridge NV-FLX-04-XKIT Features:

• 10/100BASE-T(X) Ethernet with PoE++ (up to 50W)


• 10/100Mbps, full duplex data rate


• Power Injection or Pass-through PoE++ over standard UTP or STP cable


• Up to 2,000ft (610m) at 100Mbps over 4-pair, or at 10Mbps over 1- (needs local power) or 2-pair


• Operating temperature from -40°C to +70°C


• Supports Multicast, Unicast, and Broadcast


• Auto-detect data rate for maximum bandwidth and transmission distance utilization


• Compliant with all major IP and IEEE standards for RFC network protocols such as UDP and TCP


• EN 50121-4 Standard for Railway/Subway environments


• LED indicators for operating status


• Designed and manufactured in North America


• Power consumption: 1.5W

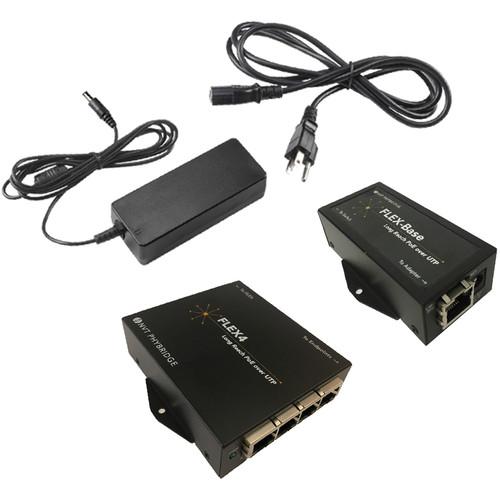

• 1 x FLEX-Base unit


• 1 x FLEX4 adapter


• 1 x 110W, 55V power supply
