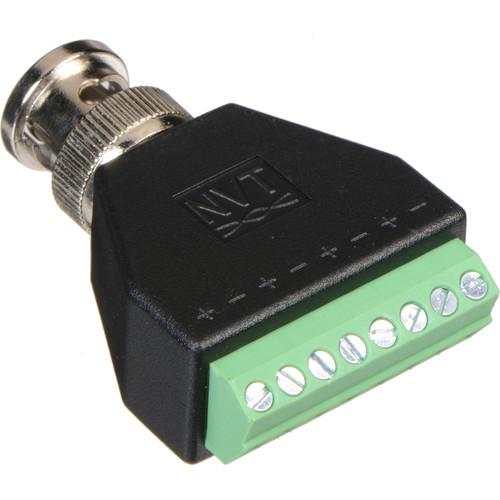

The NVT Phybridge Model NV-BNCA is an adaptor used by NVT Phybridge’s IP transceivers to convert from BNC to 2-wire. It ships standard with the NV-EC1701U transceivers, but can be used with TBus products as well. The NV-BNCA may be used mid-span along a wire run whenever conversion between coax and 2-wire cable is required. Eight screw-terminal connections each support wire diameters as large as 16 AWG .051’ (1.3mm) and can be used in applications such as: 4:1 fanout, Daisy-chaining, or 4-pair wire connectivity. Screws should be torqued to 2 in-lbs (0.2 Nm). The NV-BNCA is not intended for use with analog video transmision.

NVT Phybridge NV-BNCA Features:

• Used by NVT Phybridge’s IP transceivers to convert from BNC to 2-wire


• Used with NV-EC1701U transceiversv


• Used mid-span along a wire run whenever conversion between coax and 2-wire cable is required


• Eight screw-terminal connections each support wire diameters as large as 16AWG 1.3mm


• Can be used in applications such as: 4:1 fanout, daisy-chaining or 4-pair wire connectivity
