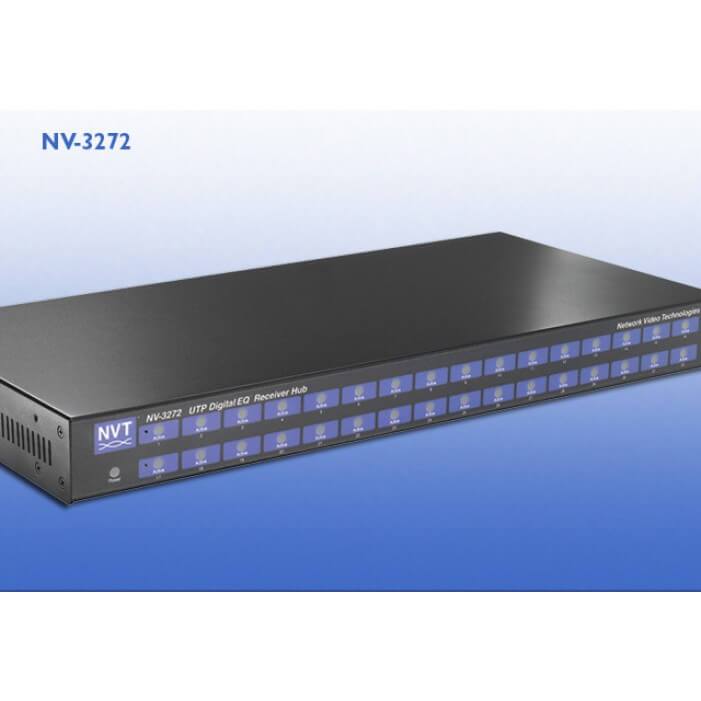

The NV-3272 from NVT Phybridge is a 32-Channel DigitalEQ Hub that allows the transmission of full-motion monochrome or color video for distances up to 1 mile (1,6km) using Category 2 or better-unshielded twisted-pair (UTP) wire. The NV-3272 from NVT Phybridge allows the use of shared or existing cable plant and The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. The NV-3272 continuously and automatically conditions the video signal, compensating for cable attenuation, wiring polarity, ground loops, and voltage transients. In NV-3272 Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist and damaging voltage spikes are eliminated due to built-in transient protection.

NVT Phybridge NV-3272 Features:

• Compact rack-mountable 19â 1U high enclosure features 32 channels with 1 output per channel


• Full motion CCTV at distances up to 1 mile (1,6km) with any NVT Phybridge passive transmitter


• Full motion CCTV at distances up to 3,000ft (1km) with any NVT Phybridge passive transceiver


• Includes Built-in transient protection and ground lifting


• Fully automatic 4-band equalization provides adjustment free equalization every time


• Includes thirty-two 2ft (60cm) coax jumper cables, rack mount hardware, and two NV-RJ45A adaptors


• Compatible with qualified UTP cameras
