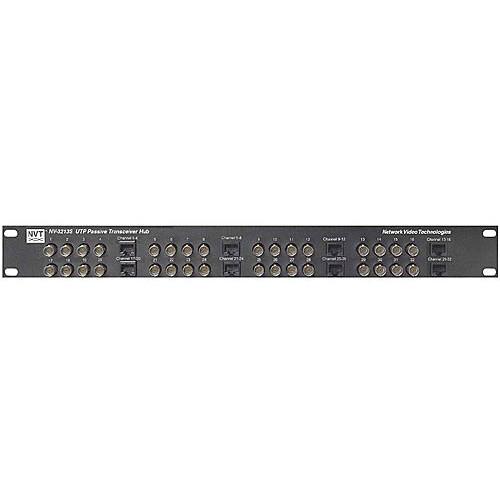

The NV-3213S from NVT Phybridge is a 32-Channel Passive Stub Hub that allows transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire and supports any type of Baseband signals. The NV-3213S from NVT Phybridge is Perfect for larger CCTV installations where port density and camera number growth are prevalent. The damaging voltage spike problems are eliminated due to built-in transient protection. In NV-3213S “up-the coax” type signal may be sent over the same wire pair at distances up to 750ft (225m). The unparalleled interference rejection ability of the Model NV-3213S Hub allows video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits.

NVT Phybridge NV-3213S Features:

• Compact rack mountable 19" 1U high enclosure features 32 channels and only 1.54" (40mm) deep


• Full motion CCTV at distances up to 750ft (225m) with any NVT Phybridge passive transceiver


• Full motion CCTV at distances up to 3,000ft (1km) with any NVT Phybridge active transceiver


• Includes Built-in transient protection


• Includes RJ45 video connectivity


• Supports “up-the coax” type control signal up to 750ft (225m)


• Includes thirty-two 2ft (60cm) coax jumper cables and rackmount hardware


• Compatible with qualified UTP cameras
