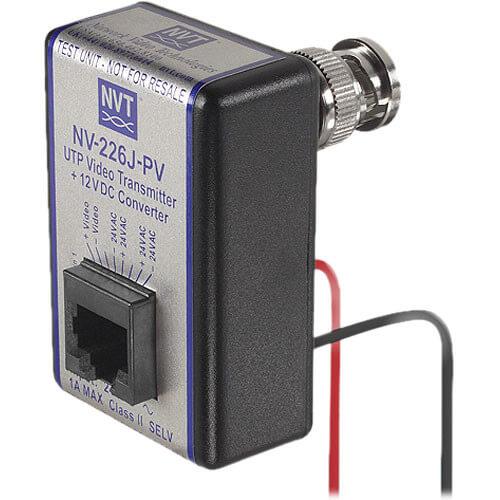

The NV-226J-PV from NVT Phybridge is a Video Transmitter & 12VDC Converter carries a limited lifetime warranty and is UL and cUL listed, with CE, WEEE, and RoHs compliant. The NV-226J-PV from NVT Phybridge is Designed to fit on the back of a fixed 12 VDC camera and converts 24VAC power from the control room, while delivering real-time baseband (composite) video at extended distances, all over one 4-pair UTP cable. The unparalleled interference rejection and low emissions of the NV-226J-PV allow video and low- voltage power to coexist within the same 4-pair cable, using structured (EIA 568B) wiring practices.

NVT Phybridge NV-226J-PV Features:

• Extended distance camera power and video routed through UTP and RJ45


• Supports 12VDC cameras with onboard regulated power


• Use with NVT Phybridge's PVD(TM) Power Supply Hubs and Cable Integrators


• Up to 3000ft (1km) with a NVT Phybridge DigitalEQ(TM) Active Receiver (see Power Distance Calculator)


• Up to 1500ft (460m) with a NVT Phybridge StubEQ(TM) Hub (see Power Distance Calculator)


• Exceptional interference rejection


• Built-in transient protection


• Limited lifetime warranty
