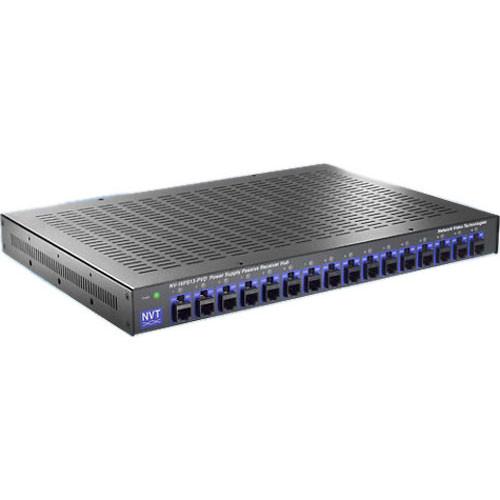

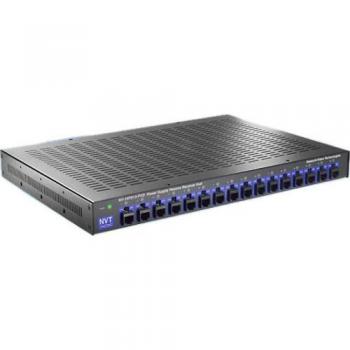

The NV-16PS13-PVD from NVT Phybridge is a Power Supply Passive Receiver Hub that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. The NV-16PS13-PVD from NVT Phybridge is Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room and has independently selectable 24VAC-OFF-28VAC outputs that support at-distance camera loads up to 1 Amp per channel. The NV-16PS13-PVD also uses cable runs under 750ft (225m). It also includes Per-channel diagnostic LEDs that display load/no-load, miswires, or fault conditions at a glance. Automatic-reset fault protection, transient protection, and ground loop free individually floating outputs.

NVT Phybridge NV-16PS13-PVD Features:

• Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable


• Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B


• Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel


• Automatic-reset fault protection; transient protection


• Individually floating outputs ensure total ground-loop immunity


• Diagnostic LEDs show load/no load, miswires, and overload conditions


• Use with the NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera


• Power cameras via UTP over significant distances


• 1U high; 12" deep; wall, desk, or rack-mountable, 2ft (60cm) BNC Cables included
