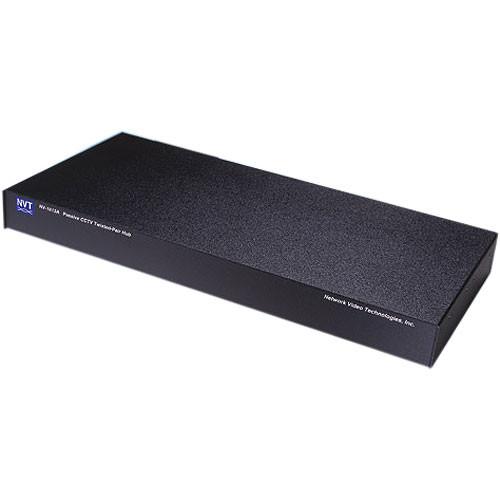

The NV-1613 from NVT Phybridge is a 16 Channel Passive Hub that allows transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire and also supports Baseband signals of all type. The NV-1613 from NVT Phybridge is Perfect for larger CCTV installations where port density and camera number growth are prevalent. In NV-1613 the “Up-the-coax” type signal may be sent over the same wire pair at distances up to 750ft (225m). The unparalleled interference rejection ability of the NV-1613 allows long run video signals to co-exist in the same wire bundle as telephone and datacom. Damaging voltage spike problems are eliminated due to the built-in transient protection and also includes co-axial cables.

NVT Phyrbidge NV-1613 Features:

• High-Density 19" 1U high enclosure features 16 ports


• Full-motion CCTV video at distances up to 750ft (225m) when used with NVT Phybridge passive transceiver


• Up to 3,000ft (1km) when used with NVT Phybridge active receiver


• Includes RJ45 video connectivity with optional NV-RJ45A RJ45 to-screw-terminal adaptors


• No power required


• Includes Built-in transient protection


• Maximum UTP cable distance for Coaxitron (up the coax) control is 750 feet (225m), regardless of the type of receiver or UTP cable in use


• Compatible with qualified UTP cameras


• Includes sixteen 2ft (60cm) coax jumper cables and rackmount hardware
