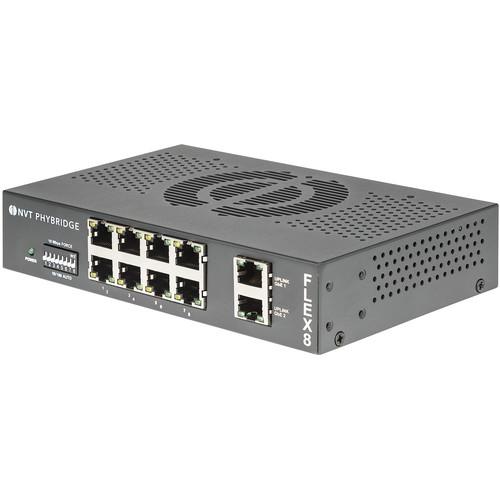

The FLEX8 8-Port PoE+ Unmanaged Switch from NVT Phybridge is a versatile, high-powered enterprise-class solution, delivering fast Ethernet and PoE+ over multi-pair UTP up to 2000' (with an optional adapter). It features eight downlink ports that support up to 50W of power per port and two 1Gb uplink ports for daisy-chain deployments. The FLEX8 is designed to make migration to IP quick and easy by leveraging 1-, 2-, or 4-pair UTP cabling infrastructure. It also auto detects data rate for maximum bandwidth and transmission distance, and is equipped with a mode toggle, which can be positioned to force 10 Mb/s when necessary to establish a link.

NVT Phyrbidge FLEX8 Features:

• 8 x 10/100 Mb/s Downlink Ports


• 2 x 1Gb Uplink Ports


• Support 1/2/4-Pair UTP Infrastructure


• Reaches 328' with Standard Mode


• Operates in standard mode for 328' reach and long-reach PoE mode (with optional adapter) for 2000' extended reach


• LED indicators for operating status and cable diagnostics


• Supports multicast, unicast, and broadcast


• EN 50121-4 standard for railway/subway environments
