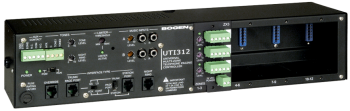

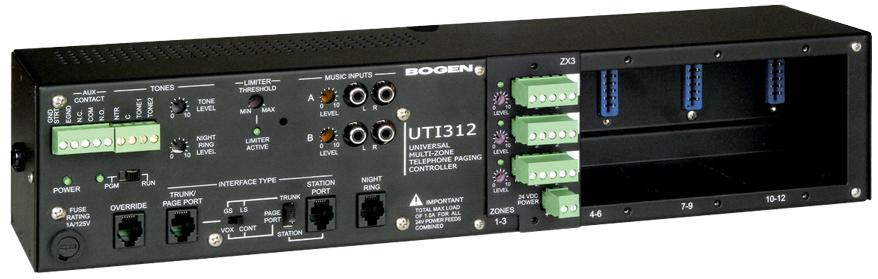

The Bogen UTI312 Zone Paging Controller provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers.The UTI312 is compatible with all standard analog port types. Each UTI312 comes with a pre-installed ZX3 module for three zones of paging and is expandable up to 12 zones. The UTI312 offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups.The UTI312 also offers flexible dialing.



Bogen UTI312 Paging Controller Features:

• Expandable from 3 to 12 zones (in 3-zone increments using ZX3 modules)


• One-way paging only


• Interfaces to Loop Start, Ground Start, Analog Station, and Page Ports

  (with or without contact closure activation)


• 2 Background music (BGM) inputs


• BGM sources assignable per zone


• Level control for each zone output


• 150 Speaker T/R drive capacity per zone


• Programmable AUX Relay


• Override input (loop start or page port)


• Separate override, all-call, tone trigger, night ring, and code call zone groups


• Contact and 90V Night Ring inputs


• 24 User-assignable zone groups


• FCC Part 68 Registered


• Listed to UL Standard 60950 for U.S. and Canada
